This elegantly engineered enclosure accommodates two battery packs of 12 cells each (21700) or standard prismatic battery packs. The battery configuration can be adjusted to suit various applications, whether for home use or travel.
• Made from PLA filament using 3D printing and high-quality components
• Features inspection covers for easy access to batteries and components
• Optimized for use with a range of VESC controllers and BMS
• Customization options available, including a selection of anodized hex spacers, knurled screws, and LED power switches
• Perfect for two 6S 7,000 mAh prismatic Li-Po batteries or two 12-cell 21700 packs
Material:
PLA (Polyactic Acid filament)
While PLA offers excellent printability and is widely used in 3D printing, it has a lower heat resistance compared to other materials. For applications involving exposure to high temperatures or demanding mechanical stress, consider using heat-resistant PLA or alternative materials to ensure optimal performance and longevity.
Dimension:
Length: 460mm
Width: 230mm
Height: 54 mm
Inside Cavity size for:
- batteries: 150x70x50mm
- BMS: 177x70x50mm
- ESC: 160x90x50mm
Weight: 2300 g
SKU: 90000-0400
HS Code: 8507.90.80
ENCLOSURE COMPONENTS
SKU QTY DESCRIPTION

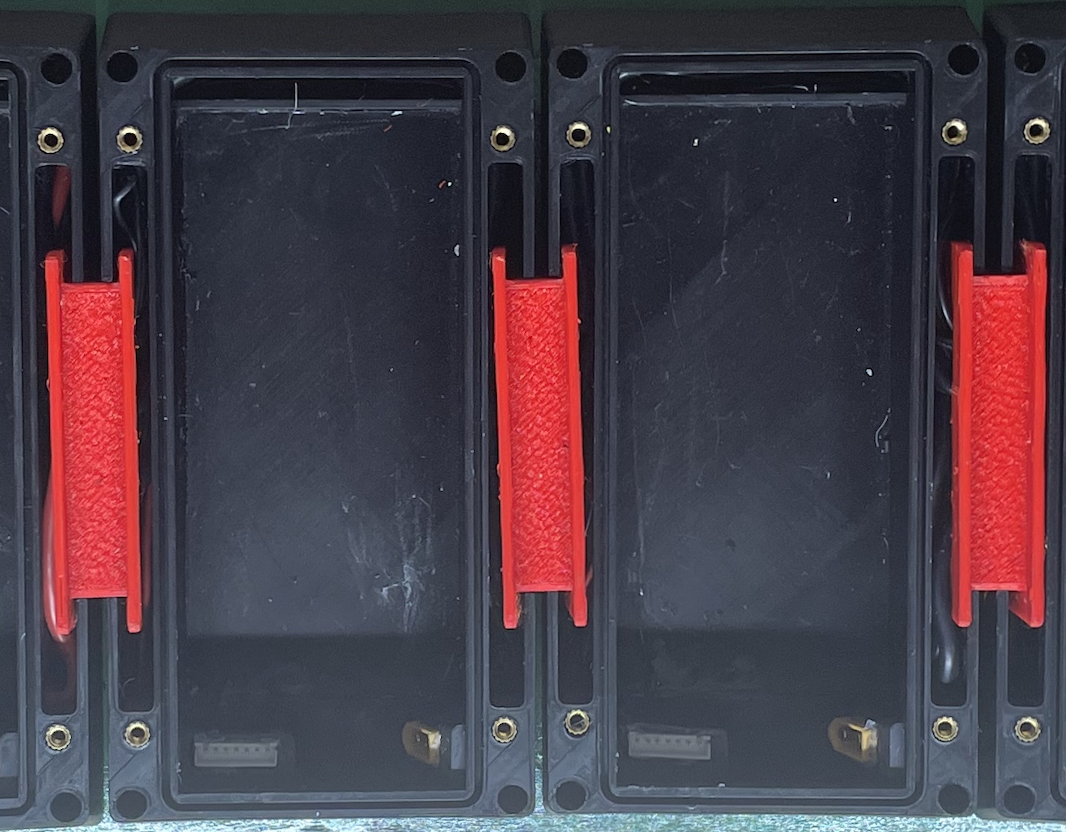

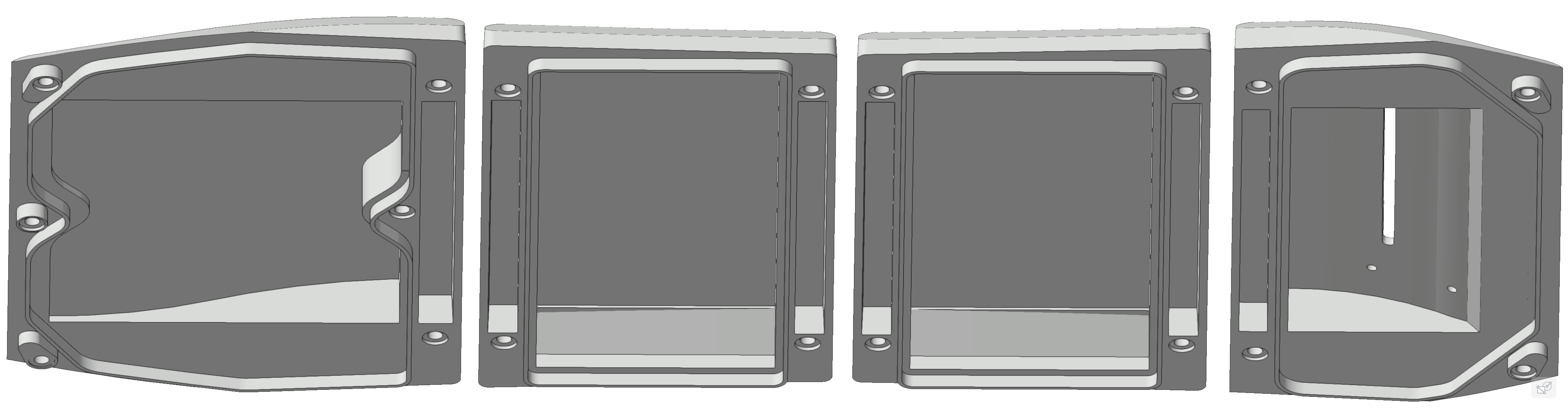

90001-0101 2 Battery Box – Modular enclosure for battery packs
90001-0102 1 BMS Box – Includes Ø20mm hole for charging connector
90001-0103 1 ESC Box – Includes Ø15mm hole for switch

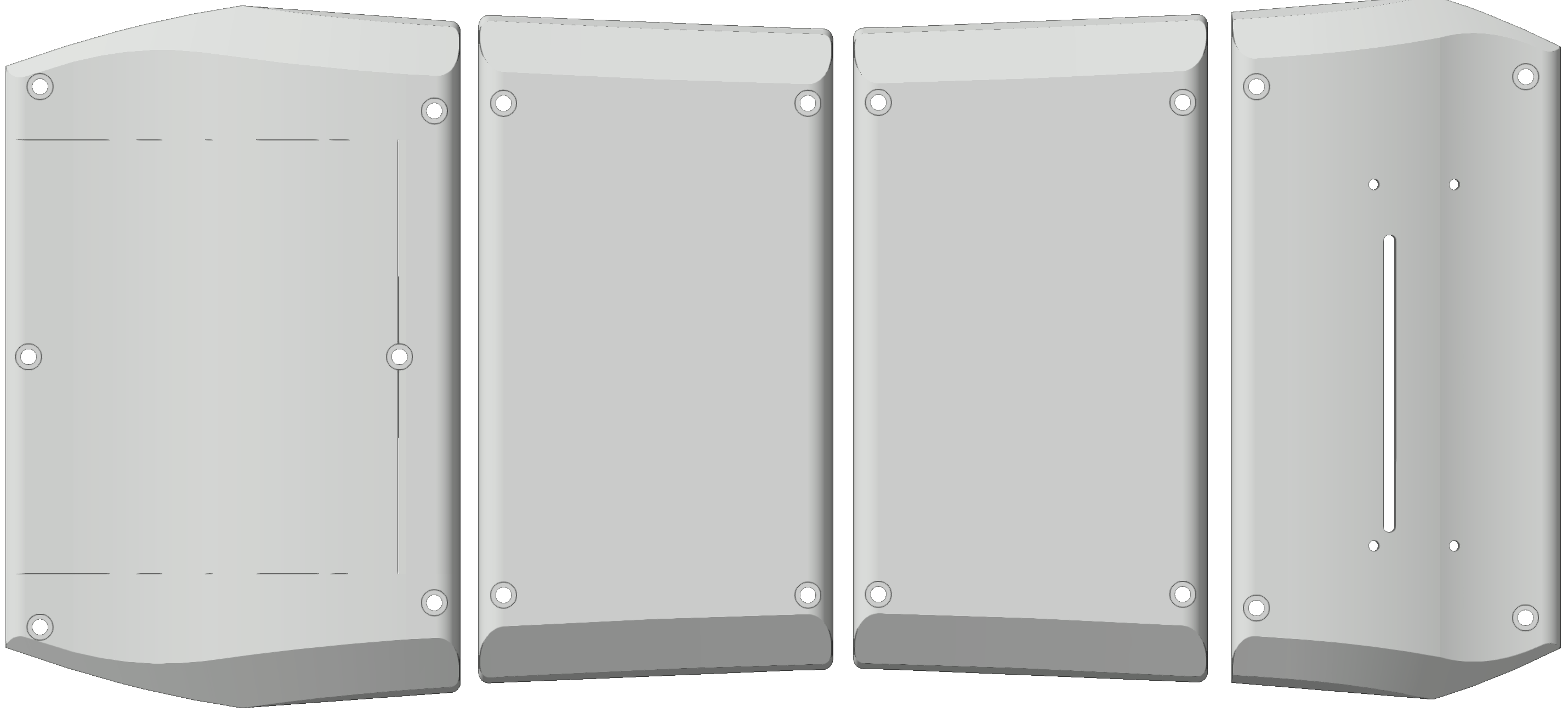

90001-0201 2 Battery Box Cover – Protective lid for battery enclosures
90001-0202 1 BMS Box Cover – Protective lid for BMS compartment
90001-0203 1 ESC Box Cover – Protective lid for ESC compartment

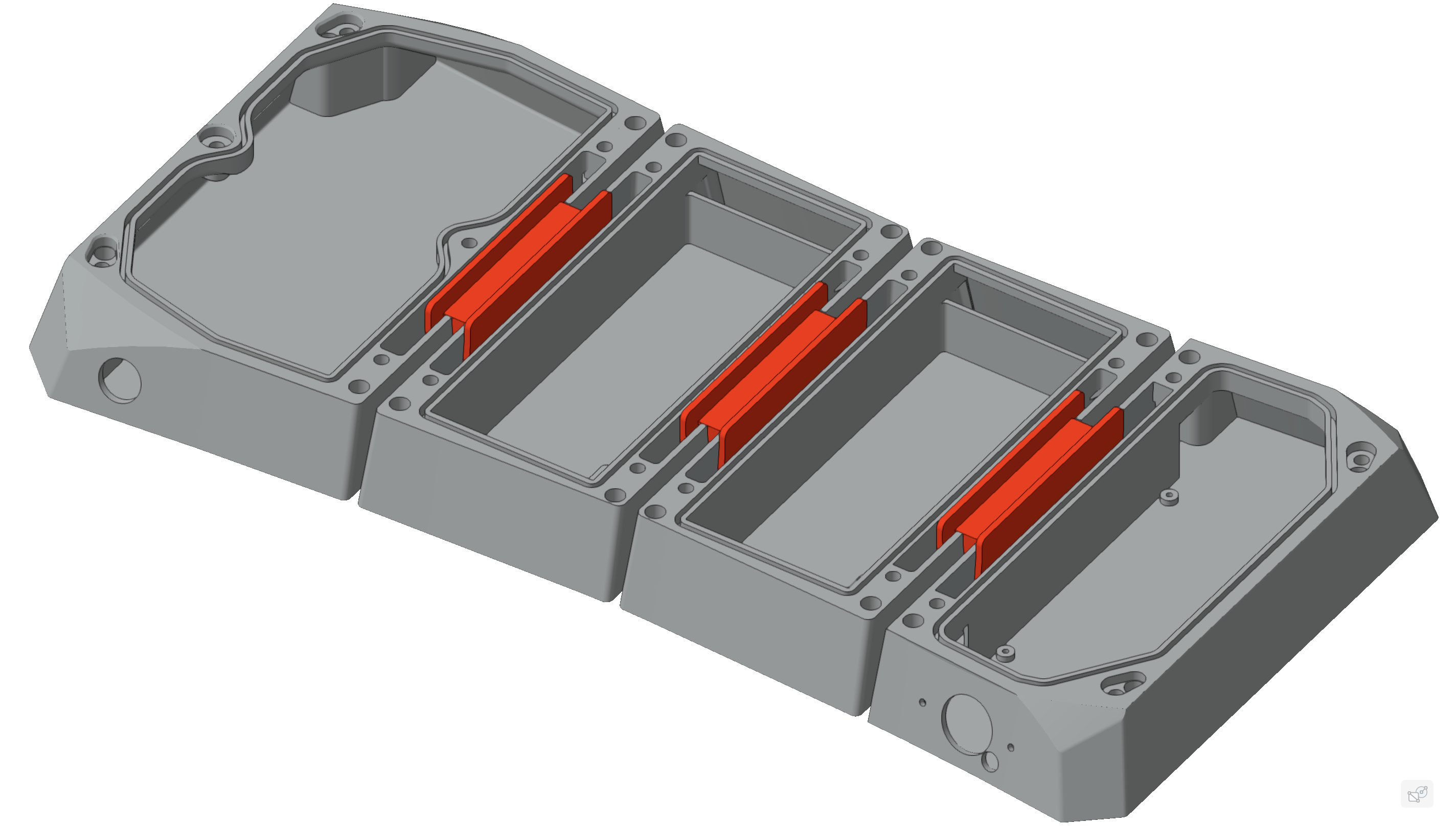

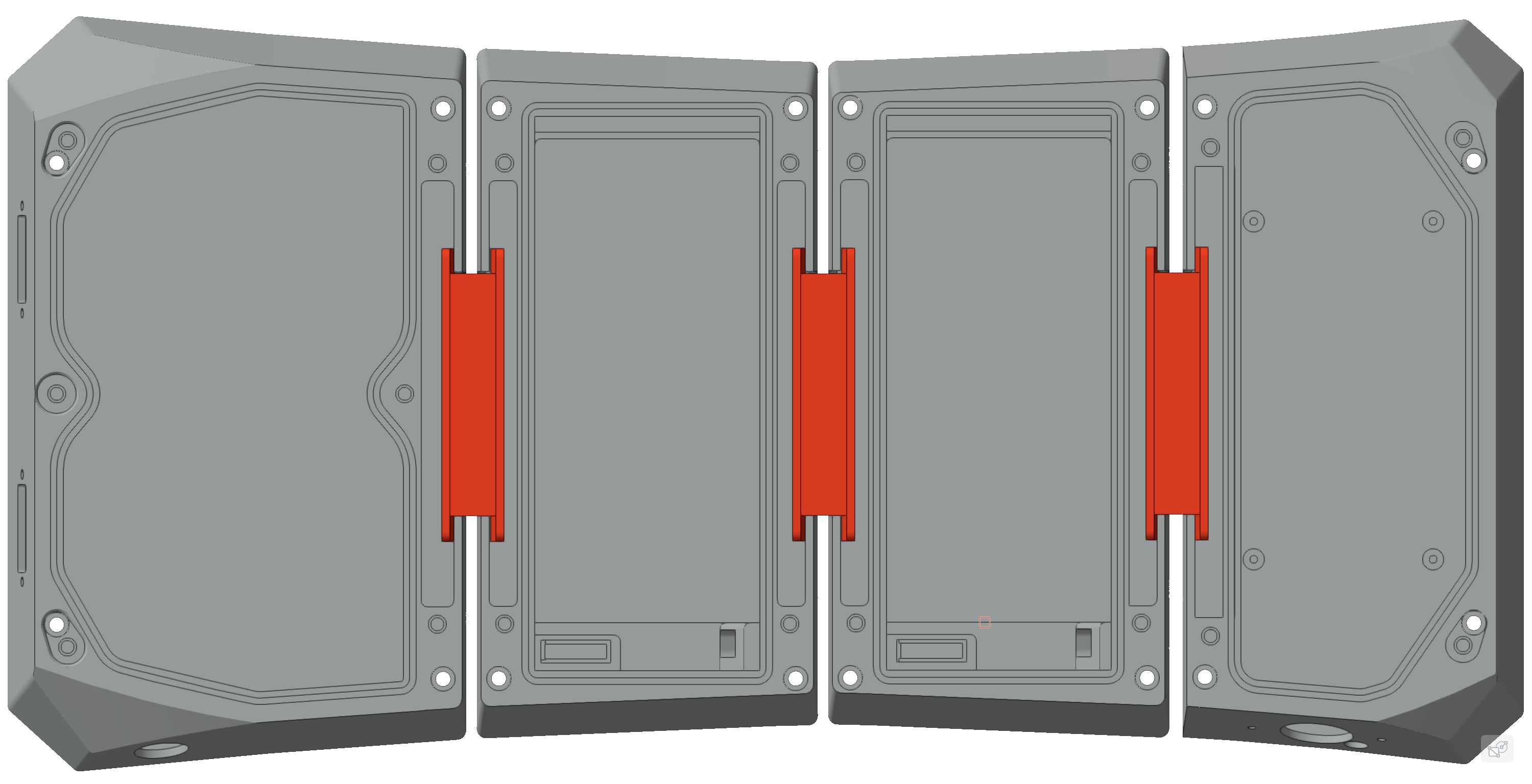

90001-0301 5 Box Link Connectors – Structural connectors for enclosure assembly
90001-0401 16 M4x20 Screws (Cover/Box) – Secures covers to boxes
90001-0402 16 M4x20 Screws (Box/Deck) – Mounts enclosure to the deck
90001-0501 16 M4x10 Threaded Inserts – Provides secure mounting points in the deck
CABLE KIT (OPTIONAL)
SKU QTY DESCRIPTION
90002-0101 2 JST 7-Pin Connector – For 6S battery balancing
90002-0102 1 JST 10-Pin Connector – For BMS connections
90002-0103 1 JST 8-Pin Connector – For BMS connections
90002-0201 2 7-Wire Cable for 6S Balancing – Lengths: 20 cm & 30 cm
90002-0301 3 XT60 Male-Female Connector – Battery plug connection
90002-0302 1 XT30 Male-Female Connector – Auxiliary power connection
